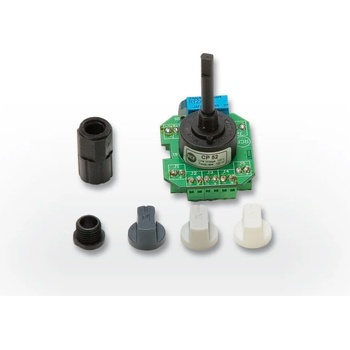

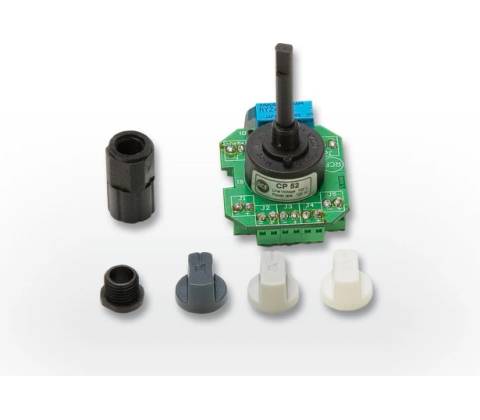

RCF CP52

volič programů pro 100V rozvod, max. zátěž 120 W/100 V, 5 poloh + OFF, 24 V relé pro nuc. poslech programu 1, bílý/černý/stříbrný knoflík, bez rámečku

• CP 52 selector can be used in 100 V constant voltage systems to select 1 out of maximum 5 available lines.
• The maximum total power of the output load cannot exceed 120 W.
• It includes a 24 V dc override relay to bypass the 6 position (5 + off) selector and route the first input (J1 terminal) directly to the output.
• CP 52 can be installed on whichever supporting frame for home / office electrical systems by drilling a hole in a blank key and fixing it.
• 3 knobs are included in 3 different colours: white, silver, anthracite.

Features:

• 5 Line selector for 100V system, load max 120W
• Bypass relay for emergency calls on line 1

General specification:

• Input voltage: 100 V
• Output voltage: 100 V
• Maximum power: 120 W
• Max Depth: 58 / 2.28 mm/inch

Physical specification:

• Height: 50 / 1.96 mm/inch
• Width: 43 / 1.69 mm/inch
• Depth: 68 / 2.67 mm/inch
• Net Weight: 0.04 / 0.08 Kg/Lbs

Shipping information:

• Package height: 120 / 4.72 mm/inch
• Package width: 70 / 2.75 mm/inch
• Package depth: 75 / 2.95 mm/inch
